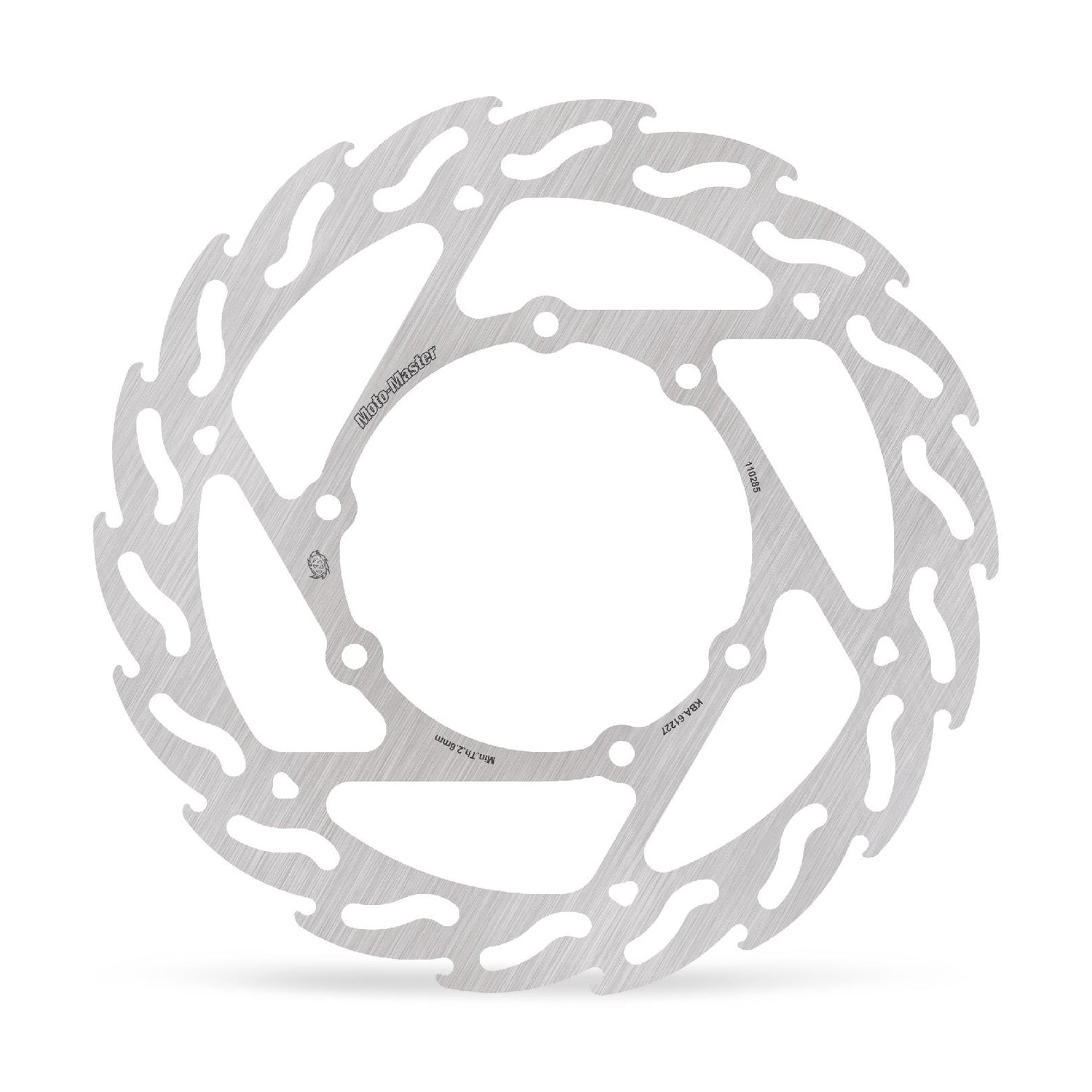

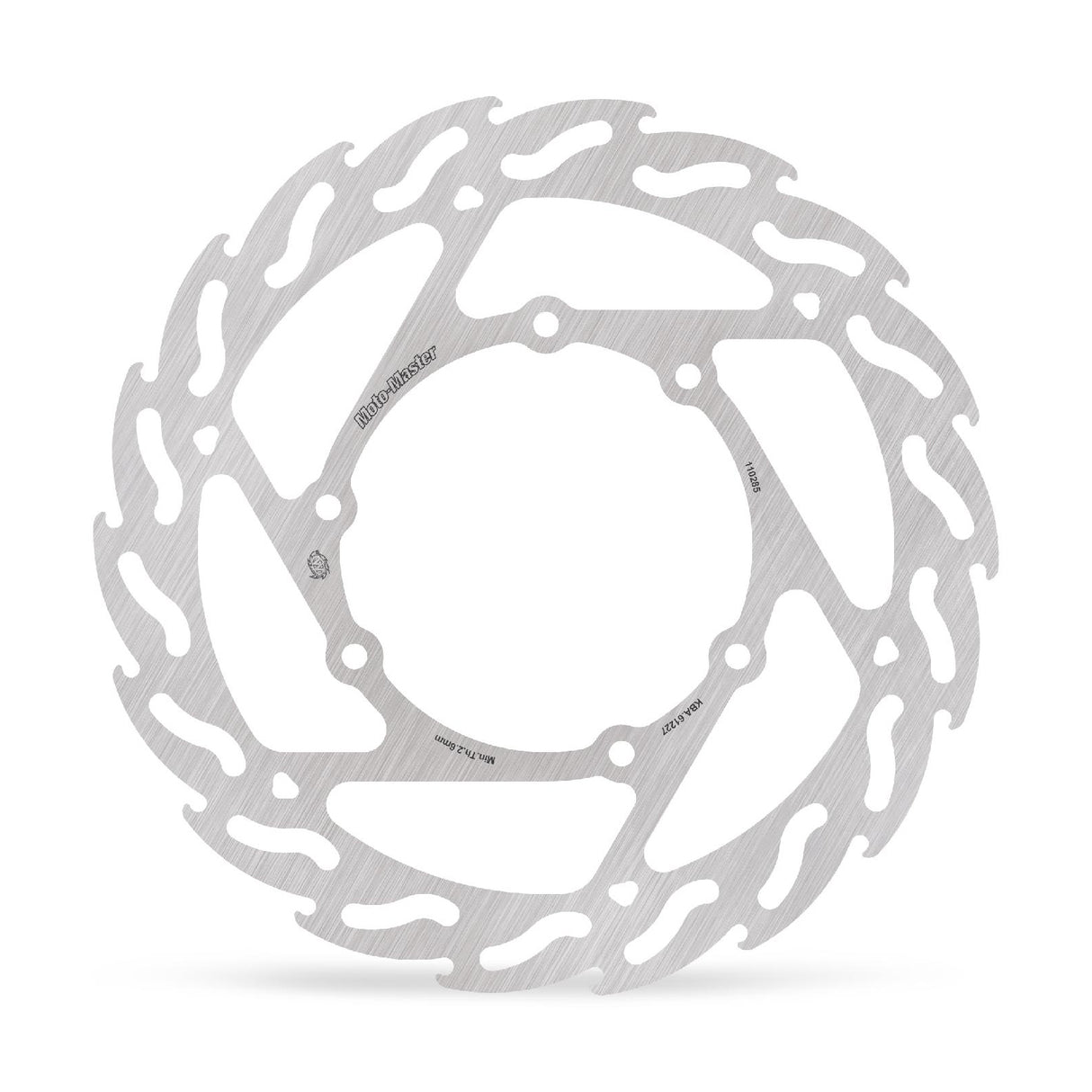

MOTO-MASTER FLAME FRONT 240 DISC - HONDA CR125/250/500/CRF250/450

The Moto-Master Flame Fixed Discs are manufactured to the tightest tolerances and specifications using a specially hardened premium quality stainless steel. Performance is taken to the next level by integrating the FLAME design into the disc.

---

• The FLAME design aids in the cooling and cleaning of the contact surface.
• The Flame Fixed discs are laser cut, CNC machined, and precision double-grinded for perfect fitment and flatness
• For best performance we recommend using Moto-Master brake pads with the matching pad compound that best suits your type of riding.
• Winningest design in todays Motocross GP racing.

---

THE FLAME ADVANTAGE

DESIGN MEETS PERFORMANCE
Next to the premium quality steel alloy which is used to give Moto-Master brake discs unsurpassed friction characteristics and durability, much of the superior performance of a Moto-Master Flame disc lies embedded within its unique FLAME design.

MAXIMUM CONTROL
Flame shaped venting slots and outer perimeter ensure an equal amount of contact surface between the brake pad and disc throughout the whole rotation of the disc. This results in smooth and more predictable braking action which allows you to brake harder.

OPTIMAL COOLING AND REDUCED WEIGHT
Flame shaped venting slots are lined up in the linear direction of movement which allows oversize slots without them chipping away at the brake pads.

DISC AND BRAKE PAD CLEANING
The Flame shaped outer perimeter and venting slots overlap to continuously clean the whole brake pad contact surface while hot gasses are immediately evacuated.

LIGHTWEIGHT FLOATERS
The rotor is fitted to the inner carrier using a lightweight design stainless steel floaters for maximum strength and durability.

REDUCED BRAKE PAD WEAR
The Flame design ensure the brake pads are always evenly supported on the rotor surface. This prevents the pads from tilting under high pressure.

SUPERIOR DISC FINISH
Specialized laser cutting technologies provide a razor sharp cut which will not corrode. Disc thickness is parallel within a 0.003mm margin. This eliminates any possible brake lever pulsation while giving unsurpassed rider feedback.

Manufacturer Part No. (MPN): 110285
Barcode: 8790497002664

Outside Diameter:	240mm
Part No.:	110285
Type:	Solid

Fitment Summary
Compatible with 113 models (yearly).

• Cannondale: C 440R, E 440AR, MX 440, X 440
• Honda: CR125 R1, CR125 R2, CR125 R3, CR125 R4, CR125 R5, CR125 R6, CR125 R7, CR125 RS, CR125 RT, CR125 RV, CR125 RW, CR125 RX, CR125 RY, CR250 R1, CR250 R2, CR250 R3, CR250 R4, CR250 R5, CR250 R6, CR250 R7, CR250 RS, CR250 RT, CR250 RV, CR250 RW, CR250 RX, CR250 RY, CR500 R, CR500 R1, CR500 RS, CR500 RT, CR500 RV, CR500 RW, CR500 RX, CRF250 R4, CRF250 R5, CRF250 R6, CRF250 R7, CRF250 R8, CRF250 R9, CRF250 RA, CRF250 RB, CRF250 RC, CRF250 RD, CRF250 RE, CRF250 X, CRF450 R2, CRF450 R3, CRF450 R4, CRF450 R5, CRF450 R6, CRF450 R7, CRF450 R8, CRF450 R9, CRF450 RA, CRF450 RB, CRF450 RC, CRF450 RD, CRF450 RE, CRF450 X
• Surron: Ultra Bee Offroad
• Vertemati: C 500 Cross, E 501 Enduro
