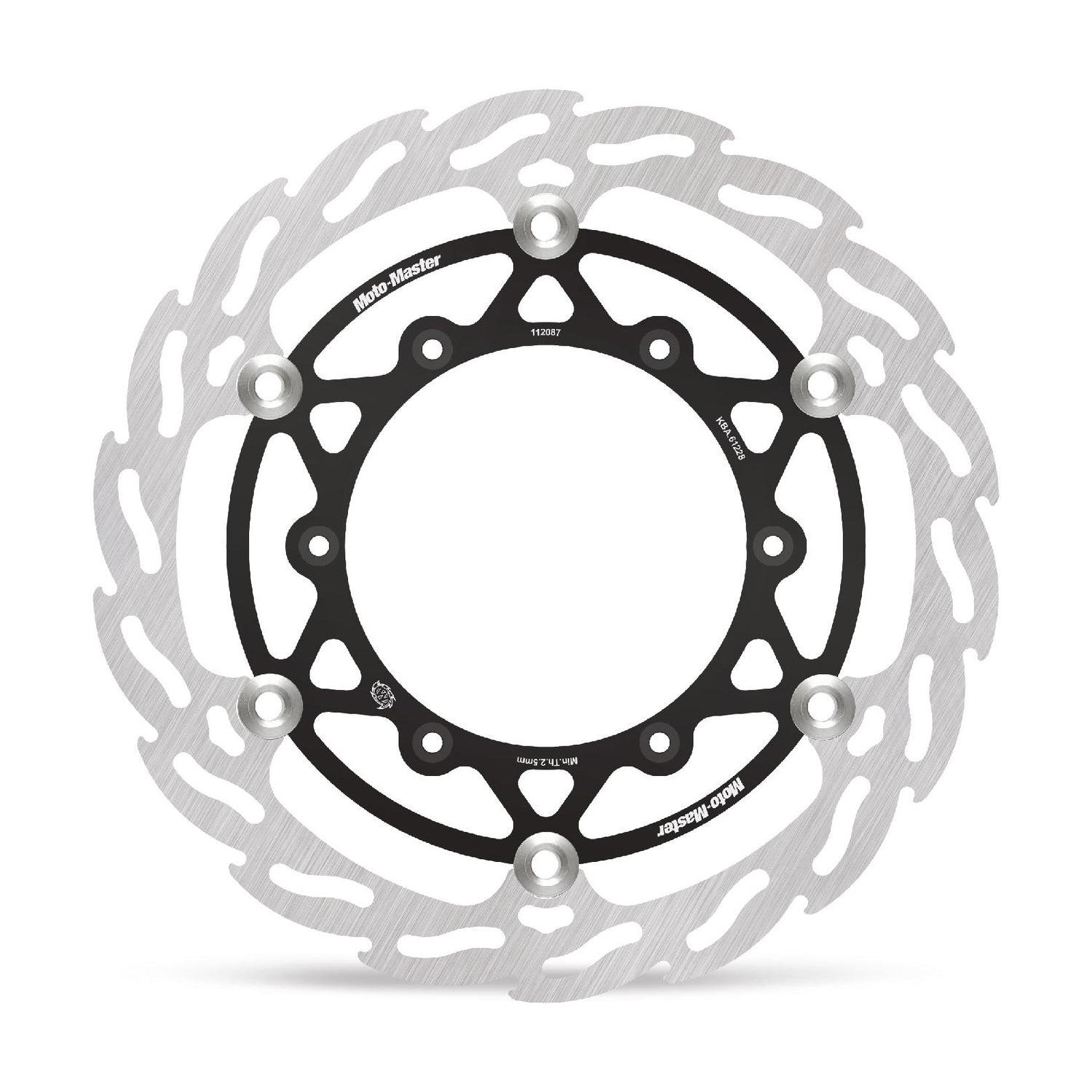

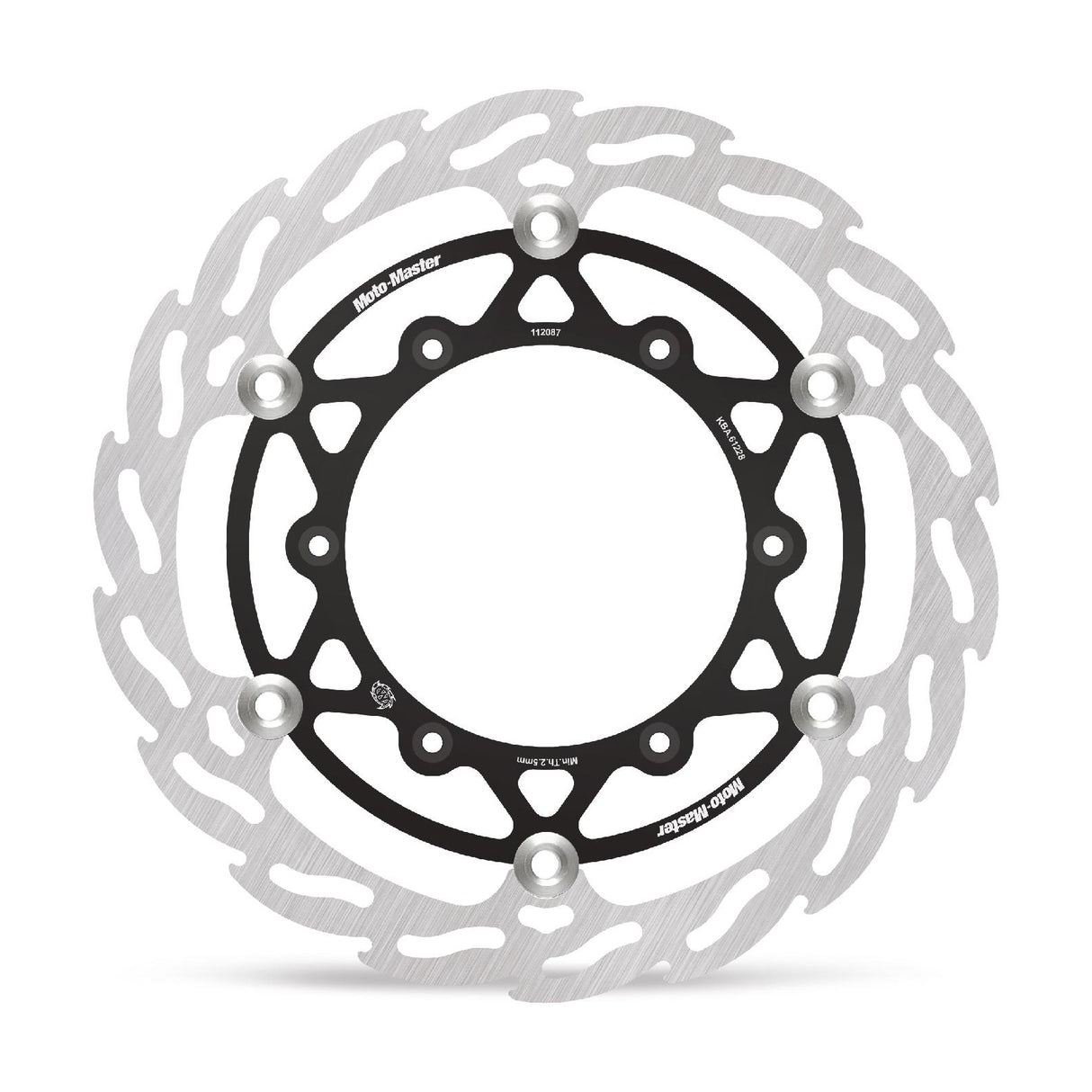

MOTO-MASTER OVERSIZE 270MM FLAME ALU. FLOATING FRONT DISC - YAMAHA WR/WRF/SUZUKI RM125/250

270mm oversize FLAME rotor is the perfect solution for motocross riders looking for more stopping power. Full-floating and cut with an innovative FLAME design, it offers a performance gain up to 35% over stock, along with up to 20% in weight savings.

---

• For best performance we recommend using Moto-Master brake pads with the matching pad compound that best suits your type of riding.
• The Flame MX 270mm rotor features a billet CNC machined Aircraft aluminium, black anodized inner ring, ultra-light stainless steel floater setup and a precision grinded, premium stainless steel outer ring.
• These oversize discs MUST be used with our adapter bracket in order to relocate the stock brake caliper to the correct position. (Depending on type of bike)
• For KTM and Husqvarna also available in 260mm version, as used by KTM Redbull Factory team

---

THE FLAME ADVANTAGE

DESIGN MEETS PERFORMANCE
Next to the premium quality steel alloy which is used to give Moto-Master brake discs unsurpassed friction characteristics and durability, much of the superior performance of a Moto-Master Flame disc lies embedded within its unique FLAME design.

MAXIMUM CONTROL
Flame shaped venting slots and outer perimeter ensure an equal amount of contact surface between the brake pad and disc throughout the whole rotation of the disc. This results in smooth and more predictable braking action which allows you to brake harder.

OPTIMAL COOLING AND REDUCED WEIGHT
Flame shaped venting slots are lined up in the linear direction of movement which allows oversize slots without them chipping away at the brake pads.

DISC AND BRAKE PAD CLEANING
The Flame shaped outer perimeter and venting slots overlap to continuously clean the whole brake pad contact surface while hot gasses are immediately evacuated.

LIGHTWEIGHT FLOATERS
The rotor is fitted to the inner carrier using a lightweight design stainless steel floaters for maximum strength and durability.

REDUCED BRAKE PAD WEAR
The Flame design ensure the brake pads are always evenly supported on the rotor surface. This prevents the pads from tilting under high pressure.

SUPERIOR DISC FINISH
Specialized laser cutting technologies provide a razor sharp cut which will not corrode. Disc thickness is parallel within a 0.003mm margin. This eliminates any possible brake lever pulsation while giving unsurpassed rider feedback.

Manufacturer Part No. (MPN): 112087
Barcode: 8790497002220

Outside Diameter:	270mm
Part No.:	112087
Type:	Floating

Fitment Summary
Compatible with 218 models (yearly).

• Fantic: XX 125, XX 250, XXF 2504T, XXF 450
• Kawasaki: KLX 400RB, KLX 400SR
• Suzuki: DRZ 250K1, DRZ 250K2, DRZ 250K3, DRZ 250K4, DRZ 250K5, DRZ 250K6, DRZ 250K7, DRZ 400E, DRZ 400S, DRZ 400SM, RM 125K1, RM 125K2, RM 125K3, RM 125K4, RM 125K5, RM 125K6, RM 125K7, RM 125K8, RM 125K9, RM 125L0, RM 125L1, RM 125L2, RM 125T, RM 125V, RM 125W, RM 125X, RM 125Y, RM 250K1, RM 250K2, RM 250K3, RM 250K4, RM 250K5, RM 250K6, RM 250K7, RM 250K8, RM 250K9, RM 250L0, RM 250T, RM 250V, RM 250W, RM 250X, RM 250Y
• Yamaha: WR 125L, WR 125M, WR 125N, WR 125P, WR 125Q, WR 200F, WR 250F, WR 250FL, WR 250FM, WR 250FN, WR 250FP, WR 250FR, WR 250FS, WR 250FT, WR 250FV, WR 250FW, WR 250ZK, WR 400FK, WR 400FL, WR 400FM, WR 426FN, WR 426FP, WR 450FA, WR 450FB, WR 450FD, WR 450FE, WR 450FF, WR 450FR, WR 450FS, WR 450FT, WR 450FV, WR 450FW, WR 450FX, WR 450FY, WR 450FZ, YZ 125, YZ 125 B4XA, YZ 125 B4XJ, YZ 125K, YZ 125K1, YZ 125L1, YZ 125M1, YZ 125N1, YZ 125P1, YZ 125R1, YZ 125S1, YZ 125T1, YZ 125V1, YZ 125W1, YZ 125X, YZ 250 BCR2, YZ 250 BCR9, YZ 250 BCRG, YZ 250 CG23C, YZ 250F, YZ 250F1, YZ 250F2, YZ 250F3, YZ 250F4, YZ 250F5, YZ 250F6, YZ 250 FX Enduro, YZ 250FY, YZ 250K, YZ 250L2, YZ 250M2, YZ 250N2, YZ 250P2, YZ 250R2, YZ 250S2, YZ 250T2, YZ 250V2, YZ 250W2, YZ 250Y, YZ 400FK, YZ 400FL, YZ 426FM, YZ 426FN, YZ 426FP, YZ 450FL, YZ 450FR, YZ 450FS, YZ 450FT, YZ 450FV, YZ 450FW, YZ 450 FX Enduro
