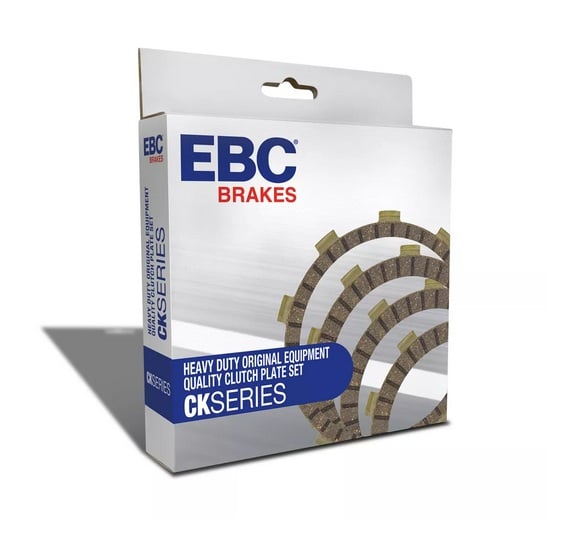

CLUTCH FRICTION PLATES SET EBC CK2313

This motorcycle clutch kit from EBC Brakes provides consistent clutch engagement and control for road and off-road use. The CK Series design and OEM-style cork-based friction material impregnated with aluminium particles construction balance bite, modulation and durability under heat. Supplied as a full engine set of friction plates only, it is suitable for wet multi-plate clutch applications and is not subject to road type-approval requirements.

Features

• OEM-size friction plates designed to fit directly into the original clutch basket
• Highly compressed friction material helps reduce swell and minimise clutch drag
• Stack height measured to reset the clutch pack to as-new specification
• Plates should be oil-soaked prior to installation to reduce the risk of heat scorching

Specifications

• Product type: Motorcycle clutch friction plate kit
• Product range/series: CK Series
• Compound / material: Cork-based friction material with aluminium particle impregnation
• Construction / design: Stack height controlled friction plate set (friction plates only)

Cross Reference Numbers

• CK2313

Vehicle fitment

Yamaha

• DT 125 R (1988-2003)
• DT 125 RE (2004-2007)
• DT 125 X (2005-2006)
• DT 200 2LR (1987)
• DT 200 R (1993)
• DT 200 WR 3XP (1992-1993)
• DT 230 Lanza (1997-1998)
• DT 230 R Lanza 4TP1/2 (1997-1998)
• SDR 200 2TV (1987-1989)
• TDR 125 (1989-2003)
• TDR 125 3HS1|3XD0|3SH3|3XD1 (1989-1993)
• TDR 125 4GW|GX (1993-2003)
• TDR 125 R 3HS2/3XE2 Lightburner (1993-1994)
• TDR 125 R Lightburner (1993-1994)
• TZR 125 5 3JB/4JB/4HW/4HX (1993-1995)
• TZR 125 5 R 4DL1/4DL2 (1991-1993)
• TZR 125 5 RR 4DL3 (1994-1995)
• TZR 125 R 4DL1|4DL2 (1991-1993)
• TZR 125 RR 4DL3 (1994-1995)
• TZR 150 R 4AP2 (2000)
• WR 200 D/E/F (1992-1994)
• WR 200 D|E|F (1992-1994)
• YFS 200 Blaster (1988-2006)
