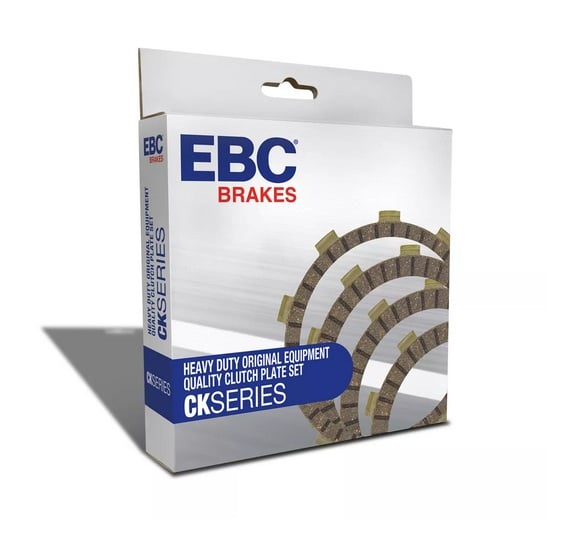

CLUTCH PLATE FRICTION SET HONDA ATC185 ATC200 TRX90 EBC CK1151

This motorcycle clutch kit from EBC Brakes provides consistent clutch engagement and control for road and fast-road use. The CK Series design and alloy particle impregnated cork-based friction material balance bite, modulation and durability under heat. Supplied as a full engine set of friction plates only, it is suitable for motorcycle wet clutch applications and is not subject to specific road approval requirements where applicable.

Features

• Stack height controlled set to restore clutch pack thickness to specification
• Direct replacement friction plates for standard clutch baskets
• Plates should be oil-soaked in standard drive case oil before installation
• EBC recommends replacing the full set rather than fitting individual plates

Specifications

• Product type: Motorcycle clutch kit (friction plate set)
• Product range/series: CK Series
• Position: Clutch (engine)
• Compound / material: Cork-based friction material with alloy particle impregnation
• Construction / design: Stack height controlled friction plates (full engine set of lined plates only)

Cross Reference Numbers

• CK1151

Vehicle Fitment

Honda

• ATC 125 ME|MG (1985)
• ATC 125 MG (1986)
• ATC 185 (1980-1983)
• ATC 185 A|SB (1980-1981)
• ATC 185 S (1981-1983)
• ATC 200 (1981-1984)
• ATC 200 E Big Red (1982-1983)
• ATC 200 ES Big Red (1984)
• ATC 200 M (1984-1985)
• ATC 200 S (1984-1986)
• ATC 200 X (1983-1987)
• Astrea (1997-1999)
• CB 125 F (2015-2021)
• CBF 125 (2006-2007)
• CBF 150 (2005-2006)
• CBF 150 M Unicorn (2006-2012)
• CBF 150 M5 Unicorn (2005)
• CBF 150 M6/M7 Unicorn (2006-2007)
• CBF 150 MB Unicorn (2011-2012)
• CR 50 R (1984-1985)
• CR 50 RE-RF (1984-1985)
• CR 60 R (1985-1986)
• CR 60 RF/RG (1985-1986)
• CR 80 R (1980-1983)
• CR 80 RA|RB (1980-1981)
• CR 80 RC (1982)
• CR 80 RD|RE (1983-1984)
• CRF 100 F (2004-2014)
• CRM 75 R (1989-1994)
• H 100 (1982-1992)
• MBX 80 F (1983-1986)
• MTX 80 R (1983-1984)
• NF 75 (1979)
• NF 100 (1997-1999)
• NSR 50 V AC10-180 (1997)
• NSR 50 X AC10-190 (1999)
• NSR 75 NS-1 (1992-2000)
• NSR 80 J-HC06 (1988, 1997, 1999)
• TRX 90 Fourtrax/Sportrax (1993-2006)
• TRX 90 EX (2007-2008)
• TRX 90 X (2009-2024)
• TRX 125 J (1988)
• XL 100 (1978-1982)
• XR 100 R (1993-2003)
• XR 100 M5 HD13 Motard (2005-2006)
• XZ 100 2 (2002)

Yamaha

• XT 125 X (2007-2011)
• XT 125 R (2008-2011)
• YBR 125 E (2006-2013)
• YBR 125 ED (2006-2016)
• YBR 125 ESD (2007-2013)
• YBR 125 ESG (2011-2013)
• YBR 125 R (2011-2012)
• YBR 125 (2007-2016)
• YFM 125 Raptor (2011-2013)
