RFX  |  SKU: FXAB 70300 99BU

RFX PRO 2 REAR AXLE ADJUSTER BLOCKS HUSQVARNA TC125/250 FC250/350/450 16-22

£2999

Description

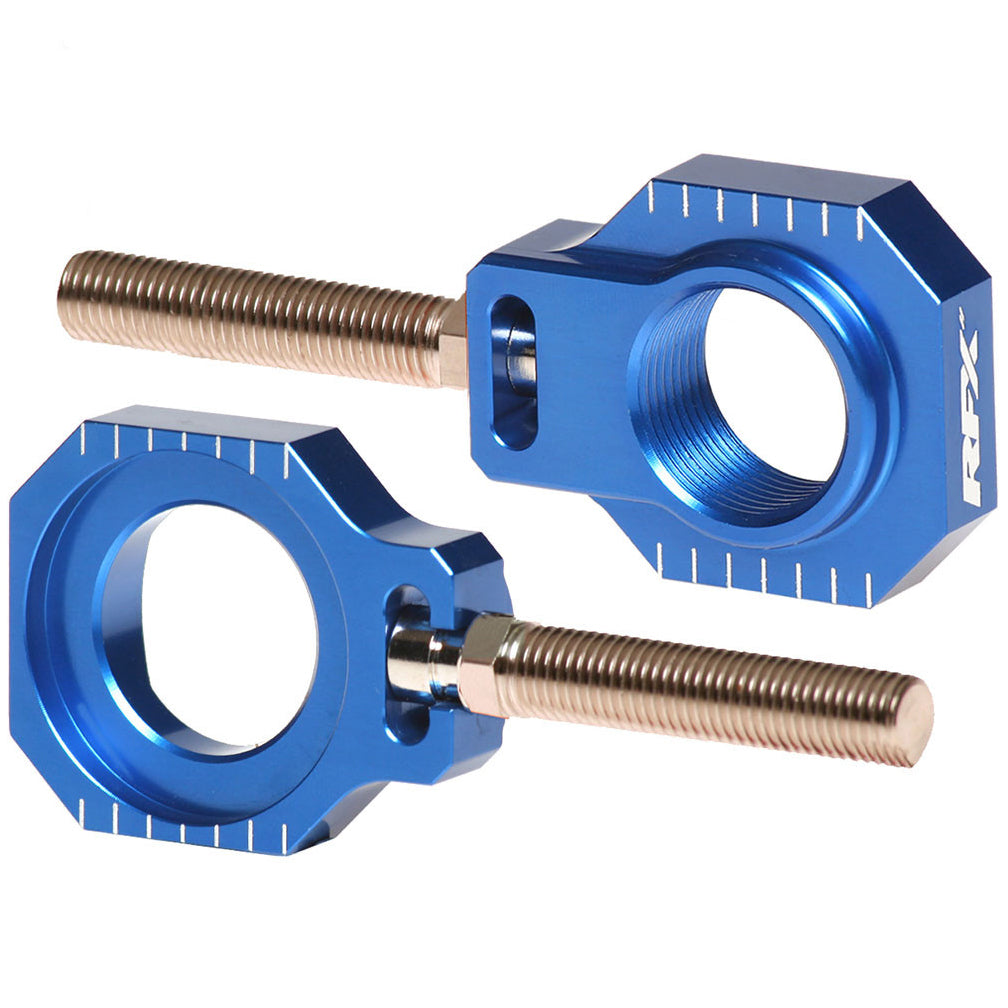

RFX Pro Series 2 Rear Axle Adjuster Blocks (Blue) Husqvarna TC125 / FC250/350/450 16-22

RFX Pro Series Axle Blocks are designed to speed up & improve wheel changes with easy fitting and more precise alignment.

CNC manufactured from 7075 aerospace grade aluminium.

 Pro Series Axle Blocks Features:-

  • Laser etched RFX logo.
  • CNC 7075 Aerospace aluminium.
  • CAD designed profile for lightness.
  • Tighter tolerances for improved fit.
  • Alignment scales both sides for precision.
  • Colour anodised for that factory bike look.

Fitting Instructions

  • Start with bike on a stand with the rear wheel raised from the ground.
  • Undo rear axle nut and remove spindle.
  • Lift chain of sprockets & remove rear wheel.
  • Remove old axle blocks.
  • Remove old axle block bolts.
  • Remove the spindle from the axle block (KTM Only) to do this may require some heat and a vice, be careful not to damage the spindle.
  • Re-fit the spindle to the new axle block (KTM Only) make sur to use red threadlock when doing this.
  • Clean around the swing arm making sure clean and free of debris.
  • Take the new RFX Axle Blocks and place on swing arm ensuring alignment and bolts are in position.
  • Clean spindle and axle nut.
  • Apply waterproof grease to spindle and wheel spacers.
  • Lift the wheel into position and re-apply the chain.
  • Insert Spindle all the way through and re-attach the axle nut, do not fully tighten nut.
  • Align the wheel square using the axle blocks and adjust to set the chain to the correct tension (Check owner’s manual for correct tension)
  • Tighten axle nut to correct torque as per owner’s manual.
